Redshift

• Redshift
  • Architecture
  • Snapshots and DR
  • COPY command
  • Redshift Spectrum

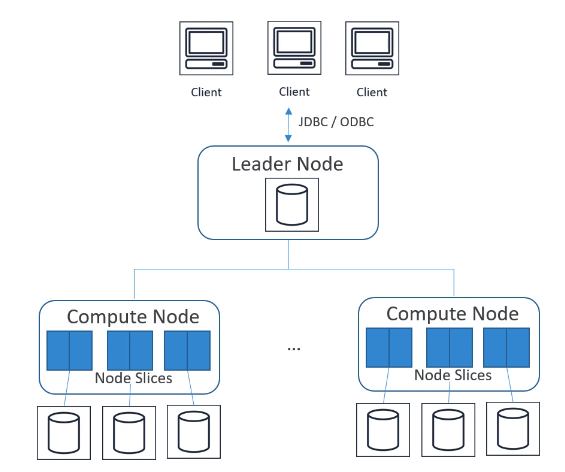

Architecture

• Performance

  • Massively Parallel Processing (MPP)
  • Columnar Data Storage
  • Column Compression (is column level operation, reduce space, reduce disc I/O)

• Is a single AZ

• Block size of 1MB

• Indexes are materialized but not required

• Data is stored in three different places:

  • Original data within cluster
  • Backup within cluster
  • Backup in S3

• Durability

• Distribution Styles

  • AUTO
  • EVEN
  • KEY
  • ALL

• Sort Keys

  • Single column
  • Compound (default)
  • Interleaved

Snapshots and DR

• Redshift has Multi-AZ mode for some clusters
• Snapshots are point-in-time backups of a cluster stored internally in S3
• Snapshots are incremental (only what has changed is saved)
• It can be restored into a new cluster
• Can be
  • Manual: snapshot is retained until you delete it
  • Automatic: e.g every 8 hours, every 5 GB, or on schedule. You can set a retention for a automated snapshot
• You can configure Redshift to copy snapshot either they are manual or automatic into another region

COPY command

• From S3, EMR, DynamoDB, remote hosts to Redshift

• S3 requires a manifest file and IAM role

• UNLOAD command: unload from a table into files in S3

Redshift Spectrum

• Query the data is already in S3 without loading it into Redshift
